Hierarchical Cluster Analysis (ChemoSpec) – 01

[This article was first published on NIR-Quimiometría, and kindly contributed to R-bloggers]. (You can report issue about the content on this page here)
Want to share your content on R-bloggers? click here if you have a blog, or here if you don't.

I have been in previous post using the ChemoSpec package for some oil data (olive and sunflower). My spectra has now a range from 1100nm to 2200nm and is raw (not treated mathematically) . I want to start using the ChemoSpec package to start using the “Hierarchical Cluster Analysis” in order to see  some cluster in my data. Of course I hope to see the olive oil in one cluster and the sunflower in the other. But probably other clusters can appear.
Anyway this is just a quick test and sure we´ll get much better knowledge of the data treating the spectra with derivatives (this will be done in another post).
So after importing the “csv” files into R, we can plot the raw spectra (olive oil in red and sunflower in red).

We can see some ranges of the spectra where there is a clear difference, and we explain in previous post that these differences are related to the fatty acids concentration.
 Let´s run the “Hierarchical Cluster Analysis” from ChemoSpec:

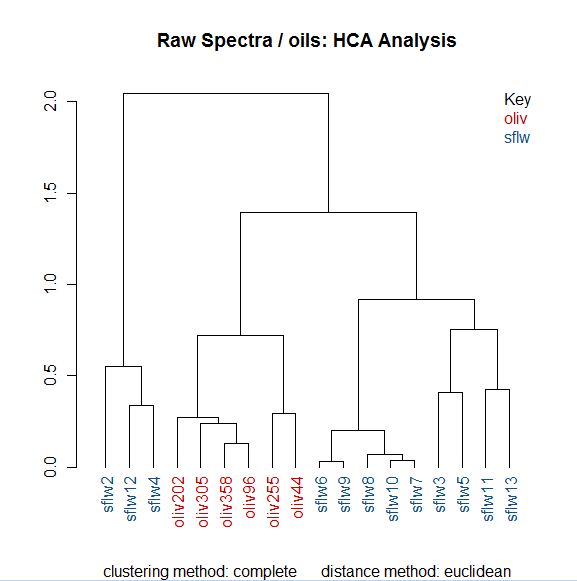

hcaSpectra(oils, title = “Raw Spectra / oils”)

We can see that 3 samples of sunflower oil are quite different from the others (Olive or sunflower), and that with the rest of the samples there are two cluster (olive and sunflower oil).
We can get some other conclusions, but what I´m going to do is to treat with second derivative the spectra and try to get more conclusions with this set of the spectra at the same time I practice with R.
