# The following code may look rough, but simply paste into R or
# a text editor (especially Notepad++) and it will look
# much better.

# PROGRAM NAME: MACHINE_LEARNING_R
# DATE: 4/19/2010
# AUTHOR : MATT BOGARD
# PURPOSE: BASIC EXAMPLES OF MACHINE LEARNING IMPLEMENTATIONS IN R
# DATA USED: GENERATED VIA SIMULATION IN PROGRAM
# COMMENTS: CODE ADAPTED FROM : Joshua Reich ([email protected]) April 2, 2009
# SUPPORT VECTOR MACHINE CODE ALSO BASED ON :
# ëSupport Vector Machines in Rî Journal of Statistical Software April 2006 Vol 15 Issue 9
#
# CONTENTS: SUPPORT VECTOR MACHINES
# DECISION TREES
# NEURAL NETWORK

library(rpart)
library(MASS)
library(class)
library(e1071)

# get data

# A simple function for producing n random samples
# from a multivariate normal distribution with mean mu
# and covariance matrix sigma

rmulnorm <- function (n, mu, sigma) {

M <- t(chol(sigma))
d <- nrow(sigma)
Z <- matrix(rnorm(d*n),d,n)
t(M %*% Z + mu)
}

# Produce a confusion matrix
# there is a potential bug in here if columns are tied for ordering

cm <- function (actual, predicted)

{

t<-table(predicted,actual)
t[apply(t,2,function(c) order(-c)[1]),]
}

# Total number of observations
N <- 1000 * 3

# Number of training observations
Ntrain <- N * 0.7

# The data that we will be using for the demonstration consists
# of a mixture of 3 multivariate normal distributions. The goal
# is to come up with a classification system that can tell us,
# given a pair of coordinates, from which distribution the data
# arises.

A <- rmulnorm (N/3, c(1,1), matrix(c(4,-6,-6,18), 2,2))
B <- rmulnorm (N/3, c(8,1), matrix(c(1,0,0,1), 2,2))
C <- rmulnorm (N/3, c(3,8), matrix(c(4,0.5,0.5,2), 2,2))

data <- data.frame(rbind (A,B,C))
colnames(data) <- c('x', 'y')

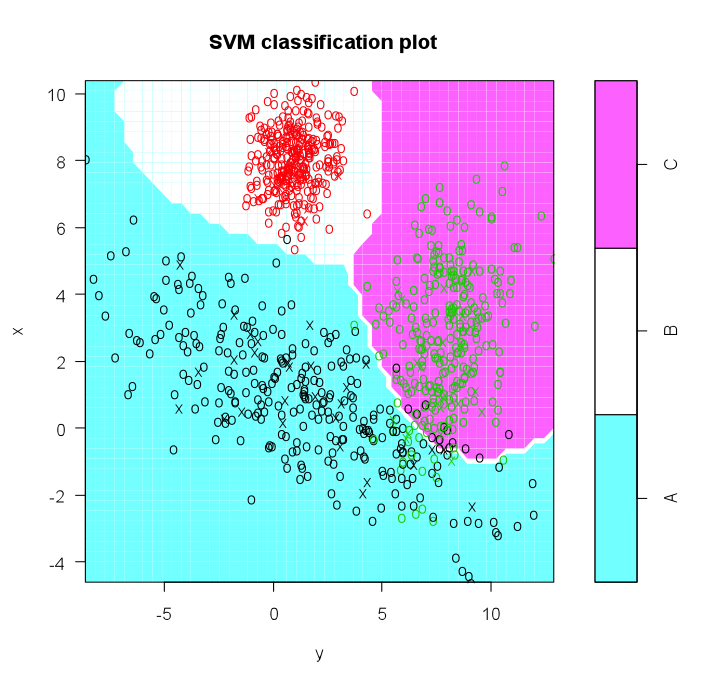

data$class <- c(rep('A', N/3), rep('B', N/3), rep('C', N/3)) # Lets have a look plot_it <- function () { plot (data[,1:2], type=’n’) points(A, pch=’A’, col=’red’) points(B, pch=’B’, col=’blue’) points(C, pch=’C’, col=’orange’) } plot_it() # Randomly arrange the data and divide it into a training # and test set. data <- data[sample(1:N),] train <- data[1:Ntrain,] test <- data[(Ntrain+1):N,] # SVM # Support vector machines take the next step from LDA/QDA. However # instead of making linear voronoi boundaries between the cluster # means, we concern ourselves primarily with the points on the # boundaries between the clusters. These boundary points define # the ‘support vector’. Between two completely separable clusters # there are two support vectors and a margin of empty space # between them. The SVM optimization technique seeks to maximize # the margin by choosing a hyperplane between the support vectors # of the opposing clusters. For non-separable clusters, a slack # constraint is added to allow for a small number of points to # lie inside the margin space. The Cost parameter defines how # to choose the optimal classifier given the presence of points # inside the margin. Using the kernel trick (see Mercer’s theorem) # we can get around the requirement for linear separation # by representing the mapping from the linear feature space to # some other non-linear space that maximizes separation. Normally # a kernel would be used to define this mapping, but with the # kernel trick, we can represent this kernel as a dot product. # In the end, we don’t even have to define the transform between # spaces, only the dot product distance metric. This leaves # this algorithm much the same, but with the addition of # parameters that define this metric. The default kernel used # is a radial kernel, similar to the kernel defined in my # kernel method example. The addition is a term, gamma, to # add a regularization term to weight the importance of distance. s <- svm( I(factor(class)) ~ x + y, data = train, cost = 100, gama = 1) s # print model results #plot model and classification-my code not originally part of this plot(s,test) (m <- cm(train$class, predict(s)))
1 – sum(diag(m)) / sum(m)

(m <- cm(test$class, predict(s, test[,1:2]))) 1 – sum(diag(m)) / sum(m) # Recursive Partitioning / Regression Trees # rpart() implements an algorithm that attempts to recursively split # the data such that each split best partitions the space according # to the classification. In a simple one-dimensional case with binary # classification, the first split will occur at the point on the line # where there is the biggest difference between the proportion of # cases on either side of that point. The algorithm continues to # split the space until a stopping condition is reached. Once the # tree of splits is produced it can be pruned using regularization # parameters that seek to ameliorate overfitting. names(train) names(test) (r <- rpart(class ~ x + y, data = train)) plot(r) text(r) summary(r) plotcp(r) printcp(r) rsq.rpart(r) cat(“\nTEST DATA Error Matrix – Counts\n\n”) print(table(predict(r, test, type=”class”),test$class, dnn=c(“Predicted”, “Actual”)))

# Here we look at the confusion matrix and overall error rate from applying
# the tree rules to the training data.

predicted <- as.numeric(apply(predict(r), 1, function(r) order(-r)[1]))
(m <- cm (train$class, predicted)) 1 – sum(diag(m)) / sum(m) # Neural Network # Recall from the heuristic on data mining and machine learning , a neural network is # a nonlinear model of complex relationships composed of multiple ‘hidden’ layers # (similar to composite functions) # Build the NNet model. require(nnet, quietly=TRUE) crs_nnet <- nnet(as.factor(class) ~ ., data=train, size=10, skip=TRUE, trace=FALSE, maxit=1000) # Print the results of the modelling. print(crs_nnet) print(“ Network Weights: “) print(summary(crs_nnet)) # Evaluate Model Performance # Generate an Error Matrix for the Neural Net model. # Obtain the response from the Neural Net model. crs_pr <- predict(crs_nnet, train, type="class") # Now generate the error matrix. table(crs_pr, train$class, dnn=c(“Predicted”, “Actual”))

# Generate error matrix showing percentages.

round(100*table(crs_pr, train$class, dnn=c(“Predicted”, “Actual”))/length(crs_pr)) Calucate overall error percentage. print( “Overall Error Rate”) (function(x){ if (nrow(x) == 2) cat((x[1,2]+x[2,1])/sum(x)) else cat(1-(x[1,rownames(x)])/sum(x))}) (table(crs_pr, train$class, dnn=c(“Predicted”, “Actual”)))
