After several previous posts introducing item response theory (IRT), we are finally ready for the analysis of a customer satisfaction data set using a rating scale. IRT can be multidimensional, and R is fortunate to have its own package, mirt, with excellent documentation (R.Philip Chalmers). But, the presence of a strong first principal component in customer satisfaction ratings is much a common finding that we will confine ourselves to a single dimension, unless our data analysis forces us into multidimensional space. And this is where we will begin this post by testing the assumption of unidimensionality.

Next, we must run the analysis and interpret the resulting estimates. Again, R is fortunate that Dimitris Rizopoulos has provided the ltm package. We will spend some time discussing the results because it takes a couple of examples before it becomes clear that rating scales are ordinal, that each item can measure the same latent trait differently, and that the different items differentiate differently at different locations along the individual difference dimension. That is correct, I did say “*different*items

*differentiate*

*differently*at

*different*locations along the individual

*difference*dimensions.”

Let me explain. We are measuring differences among customers in their levels of satisfaction. Customer satisfaction is not like water in a reservoir, although we often talk about satisfaction using the reservoir or stockpiling metaphors. But the stuff that brands provide to avoid low levels of customer satisfaction is not the stuff that brands provide to achieve high levels of customer satisfaction. Or to put it differently, that which upsets us and creates dissatisfaction is not the same as that which delights us and generates high positive ratings. Consequently, items measuring the basics will differentiate among customers at the lower end of the satisfaction continuum, and items that tap features or services that exceed our expectations will do the same at the upper end. No one item will cover the entire range equally well, which is why we have a scale with multiple items, as we shall see.

**Overview of the Customer Satisfaction Data Set**

In the table below, I have labeled the variables using their component names. You should note that all the ratings tend to be concentrated in the upper two or three categories (negative skew), but this is especially true for the purchase and service ratings with the highest means. This is a common finding as I have noted in an earlier post.

Proportion Rating Each Category on 5-Point Scale | Descriptive Statistics | ||||||||

1 | 2 | 3 | 4 | 5 | mean | sd | skew | ||

Purchase_1 | 0.005 | 0.007 | 0.079 | 0.309 | 0.599 | 4.49 | 0.72 | -1.51 | |

Purchase_2 | 0.004 | 0.015 | 0.201 | 0.377 | 0.404 | 4.16 | 0.82 | -0.63 | |

Purchase_3 | 0.007 | 0.016 | 0.137 | 0.355 | 0.485 | 4.30 | 0.82 | -1.09 | |

Flight_1 | 0.025 | 0.050 | 0.205 | 0.389 | 0.330 | 3.95 | 0.98 | -0.86 | |

Flight_2 | 0.022 | 0.055 | 0.270 | 0.403 | 0.251 | 3.81 | 0.95 | -0.60 | |

Flight_3 | 0.024 | 0.053 | 0.305 | 0.393 | 0.224 | 3.74 | 0.94 | -0.52 | |

Flight_4 | 0.006 | 0.022 | 0.191 | 0.439 | 0.342 | 4.09 | 0.81 | -0.66 | |

Flight_5 | 0.048 | 0.074 | 0.279 | 0.370 | 0.229 | 3.66 | 1.06 | -0.63 | |

Flight_6 | 0.082 | 0.151 | 0.339 | 0.259 | 0.169 | 3.28 | 1.16 | -0.23 | |

Service_1 | 0.002 | 0.008 | 0.101 | 0.413 | 0.475 | 4.35 | 0.71 | -0.91 | |

Service_2 | 0.004 | 0.013 | 0.091 | 0.389 | 0.503 | 4.37 | 0.74 | -1.17 | |

Service_3 | 0.009 | 0.018 | 0.147 | 0.422 | 0.405 | 4.19 | 0.82 | -0.97 |

**And How Many Dimensions Do You See in the Data?**

P_1 | P_2 | P_3 | F_1 | F_2 | F_3 | F_4 | F_5 | F_6 | S_1 | S_2 | S_3 | |

Purchase_1 | | 0.43 | 0.46 | 0.34 | 0.30 | 0.33 | 0.39 | 0.28 | 0.25 | 0.39 | 0.40 | 0.37 |

Purchase_2 | 0.43 | 0.46 | 0.37 | 0.43 | 0.33 | 0.36 | 0.31 | 0.34 | 0.43 | 0.40 | 0.42 | |

Purchase_3 | 0.46 | 0.46 | | 0.29 | 0.36 | 0.34 | 0.41 | 0.29 | 0.30 | 0.38 | 0.44 | 0.45 |

Flight_1 | 0.34 | 0.37 | 0.29 | | 0.37 | 0.43 | 0.37 | 0.45 | 0.35 | 0.44 | 0.44 | 0.40 |

Flight_2 | 0.30 | 0.43 | 0.36 | 0.37 | 0.42 | 0.38 | 0.35 | 0.45 | 0.40 | 0.39 | 0.36 | |

Flight_3 | 0.33 | 0.33 | 0.34 | 0.43 | 0.42 | 0.52 | 0.38 | 0.40 | 0.33 | 0.38 | 0.35 | |

Flight_4 | 0.39 | 0.36 | 0.41 | 0.37 | 0.38 | 0.52 | 0.35 | 0.35 | 0.35 | 0.37 | 0.37 | |

Flight_5 | 0.28 | 0.31 | 0.29 | 0.45 | 0.35 | 0.38 | 0.35 | 0.38 | 0.37 | 0.39 | 0.40 | |

Flight_6 | 0.25 | 0.34 | 0.30 | 0.35 | 0.45 | 0.40 | 0.35 | 0.38 | | 0.40 | 0.38 | 0.35 |

Service_1 | 0.39 | 0.43 | 0.38 | 0.44 | 0.40 | 0.33 | 0.35 | 0.37 | 0.40 | | 0.66 | 0.51 |

Service_2 | 0.40 | 0.40 | 0.44 | 0.44 | 0.39 | 0.38 | 0.37 | 0.39 | 0.38 | 0.66 | 0.70 | |

Service_3 | 0.37 | 0.42 | 0.45 | 0.40 | 0.36 | 0.35 | 0.37 | 0.40 | 0.35 | 0.51 | 0.70 | |

Do we have evidence for one or three factors? Perhaps the scree plot can help. Here we see a substantial first principal component accounting for 44% of the total variation and five times larger than the second component. And then we have a second and third principal component with values near one. Are these simply scree (debris at the base of a hill) or additional factors needing only the proper rotation to show themselves?

The bifactor model helps to clarify the structure underlying these correlations. The uniform positive correlation among all the ratings is shown below in the sizeable factor loadings from g (the general factor). The three components, on the other hand, appear as specific factors with smaller loadings. And how should we handle Service_2, the only item with a specific factor loading higher than 0.4? Service_2 does seem to have the highest correlations across all the items, yet it follows the same relative pattern as the other service measures. The answer is that Service_2 asks about service at a very general level so that at least some customers are thinking not only about service but about their satisfaction with the entire flight. We need to be careful not to include such higher-order summary ratings when all the other items are more concrete. That is, all the items should be written at the same level of generality.

IRT would prefer the representation in the bifactor model and would like to treat the three specific components as “nuisance” factors. That is, IRT focuses on the general factor as a single underlying latent trait (the foreground) and ignores the less dramatic separation among the three components (the background). Of course, there are alternative factor representations that will reproduce the correlation matrix equally well. Such are the indeterminacies inherent in factor rotations.

**The Graded Response Model (grm)**

As a statistical equation, the graded response model does not make any assertions concerning how the underlying latent variable “produces” a rating for an individual item. Yet, it will help us to understand how the model works if we speculate about the response generation process. Relying on a little introspection, for all of us have completed rating scales, we can imagine ourselves reading one of these rating items, for example, Service_2. What might we be thinking? “I’m not unhappy with the service I received; in fact, I am OK with the way I was treated. But I am reluctant to use the top-box rating of five except in those situations where they go beyond my expectation. So, I will assign Service_2 a rating of four.” You should note that Service_2 satisfaction is not the same as the unobserved satisfaction associated with the latent trait. However, Service_2 satisfaction ought to be positively correlated with latent satisfaction. Otherwise, the Service_2 rating would tell us nothing about the latent trait.

Everything we have just discussed is shown in the above figure. The x-axis is labeled “Ability” because IRT models saw their first applications in achievement testing. However, in this example you should read “ability” as latent trait or latent customer satisfaction. The x-axis is measured in standardized units, not unlike a z-score. Pick a value on the x-axis, for example, the mean zero, and draw a perpendicular line at that point. What rating score is an average respondent with a latent trait score equal to zero likely to give? They are not likely to assign a “1” because the curve for 1 has fallen to probability zero. The probabilities for “2” or “3” are also small. It looks like “4” or “5” are the most likely ratings with almost equal probabilities of approximately one half. It should be clear that unlike our hypothetical rater described in the previous paragraph, we do not see any reluctance to use the top-box category for this item.

Each item has its own response category characteristic curve, like the one shown above for Service_2, and each curve represents the relationship between the latent trait and the observed ratings. But what should we be looking for in these curves? What would a “good” item look like, or more specifically, is Service_2 a good item? Immediately, we note that the top-box is reached rather “early” along the latent trait. Everyone above the mean has a greater probability of selecting “5” than any other category. It should be noted that this is consistent with our original frequency table at the beginning of this post. Half of the respondents gave Service_2 a rating of five, so Service_2 is unable to differentiate between respondents at the mean or one standard deviation above the mean or two standard deviations above the mean.Perhaps we should look at a second item to help us understand how to interpret item characteristic curves. Flight_6 might be a good choice for a second item because the frequencies for Flight_6 seem to be more evenly spread out over the five category values: 0.082, 0.151, 0.339, 0.259, and 0.196.

And that is what we see, but with a lot of overlapping curves. What do I mean? Let us draw our perpendicular at zero again and observe that an average respondent is only slightly more likely to assign a “3” than a “4” with some probability that they would give instead a “2” or a “5.” We would have liked these curves to have been more “peaked” and with less overlap. Then, there would be much less ambiguity concerning what values of the latent trait are associated with each category of the rating scale. In order to “grasp” this notion, imagine grabbing the green “3” curve at its highest point and pulling it up until the sides move closer together. Now, there is a much smaller portion of the latent trait associated with a rating of 3. When all the curves are peaked and spread over the range of the latent trait, we have a “good” item.

**Comparing the Parameter Estimates from Different Items**

Coefficients: | Extrmt1 | Extrmt2 | Extrmt3 | Extrmt4 | Dscrmn |

Purchase_1 | -3.72 | -3.20 | -1.86 | -0.39 | 1.75 |

Purchase_2 | -3.98 | -3.00 | -1.11 | 0.29 | 1.72 |

Purchase_3 | -3.57 | -2.85 | -1.41 | 0.01 | 1.73 |

Flight_1 | -2.87 | -2.07 | -0.88 | 0.58 | 1.64 |

Flight_2 | -3.08 | -2.14 | -0.64 | 0.95 | 1.56 |

Flight_3 | -3.05 | -2.15 | -0.50 | 1.11 | 1.53 |

Flight_4 | -3.94 | -2.87 | -1.17 | 0.55 | 1.58 |

Flight_5 | -2.53 | -1.79 | -0.46 | 1.08 | 1.52 |

Flight_6 | -2.26 | -1.21 | 0.21 | 1.51 | 1.35 |

Service_1 | -3.46 | -2.76 | -1.46 | 0.02 | 2.50 |

Service_2 | -2.91 | -2.33 | -1.39 | -0.07 | 3.13 |

Service_3 | -2.86 | -2.32 | -1.17 | 0.24 | 2.45 |

1 vs. 2-5 | 1-2 vs. 3-5 | 1-3 vs. 4-5 | 1-4 vs. 5 |

Our item response categories characteristic curves for Flight_6 show the 50% inflection point only for the two most extreme categories, ratings of one and five. The remaining curves are constructed by subtracting adjacent categories. Before we leave, however, you must notice that the cutpoints for Service_2 all fall toward the bottom of the latent trait distribution. As we noted before, even the cutpoint for the top-box is not quite zero because more than half the respondents gave a rating of five.

What about the last column with the estimates of the discrimination parameters? We have already noted that there is a benefit when the characteristics curves for each of the category levels have high peaks. The higher the peaks, then the less overlap between the category values and the greater the discrimination between the rating scores. Thus, although the ratings for Flight_6 span the range of the latent trait, these curves are relatively flat and their discrimination is low. Service_2, on the other hand, has a higher discrimination because its curves are more peaked, even if those curves are concentrated toward the lower end of the latent trait.

**Item Information**

“So far, so good,” as they say. We have concluded that the items have sufficiently high correlation to justify the estimate of a single latent trait score. We have fit the graded response model and estimated our latent trait. We have examined the item characteristic curves to assess the relationship between the latent trait and each item rating. We were hoping for items with peaked curves spread across the range of the latent trait. We were a little disappointed. Now, we will turn to the concept of item information to discover how much we can learn about the latent trait from each item.

We remember that the observed ratings are indicators of the latent variable, and each item provides some information about the underlying latent trait. The term information is used in IRT to indicate the reciprocal of the precision with which the latent trait is measured. Thus, a high information value is associated with a small standard error of measurement. Unlike classical test theory with its single value of reliability, IRT does not assume that measurement precision is constant for all levels of the latent trait. The figure below displays how well each item performs as a function of the latent trait.What can we conclude from this figure? First, as we saw at the beginning of the post when we examined the distributions for the individual items, we have a ceiling effect with most of our respondents using only the top two categories of our satisfaction scale. This is what we observe from our item information curves. All the curves begin to drop after the mean (ability = 0). To be clear, our latent trait is estimated using all 12 items, and we get better differentiated from the 12 items than from any item by itself. However, let me add that almost 5% of the respondents gave ratings of five to every item and obtained the highest possible score. Thus, we see a ceiling effect for the latent trait, although a smaller ceiling effect than that for the individual items. Still we could have benefited from the inclusion of a few items with lower mean scores that were measuring features or services that are more difficult to deliver.

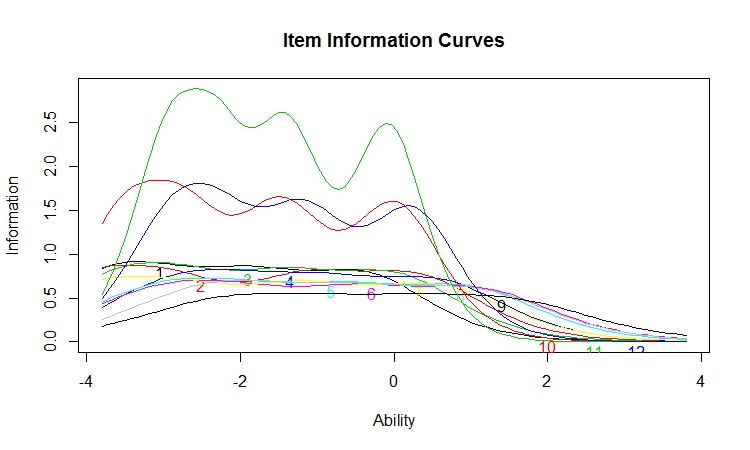

The green curve yielding the most information at low levels of latent trait is our familiar Service_2. Along with it are Service _1 (red) and Service_3 (blue). The three Purchase ratings are labeled 1, 2, and 3. The six ratings of the Flight are the only curves providing any information in the upper ranges of the latent variable (numbered 4-9). All of this is consistent with the item distributions. The means for all the Purchase and Service ratings are above 4.0. The means for the Flight items are not much better, but most of these means are below 4.0.**Summary**

**Appendix with R-code**

library(psych)

describe(data) # means and SDs for data file with 12 ratingscor(data) # correlation matrix

scree(data, factors=FALSE) # scree plot

omega(data) # runs bifactor model

library(ltm)

descript(data) # runs frequency tables for every itemfit<-grm(data) # graded response model

fit # print cutpoints and discrimination

plot(fit) # plots item category characteristic curves

plot(fit, type=”IIC”) # plots item information curves# next two lines calculate latent trait scores and assign them to variable named trait

pattern<-factor.scores(fit, resp.pattern=data)trait<-pattern$score.dat$z1
